  Plotting Field Overlays > Setting Field Plot Attributes > Modifying Field Plot Colors

Setting the Color Key Visibility

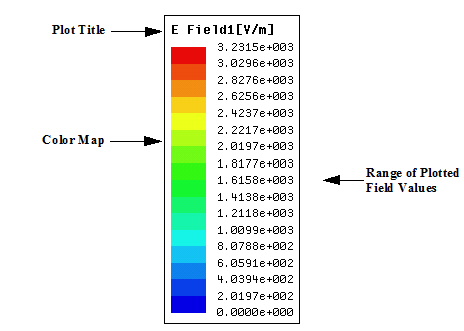

The color key (shown below) displays the range of plotted field values for a field overlay plot. It displays the colors that correspond to the range of field values on the plot.

1. Click View>Active View Visibility.

The Active View Visibility dialog box appears.

2. Click the Color Keys tab.

3. In the Visibility column, select the field overlay or mesh plots in which you want to display the color key. Clear the plots in which you want to hide the color key from view.

4. Click Done to dismiss the dialog box.

Alternatively, to hide the color key, right-click on the color key in the view window, and then click Hide from the shortcut menu.

Only the color keys in the selected plots will be visible.
